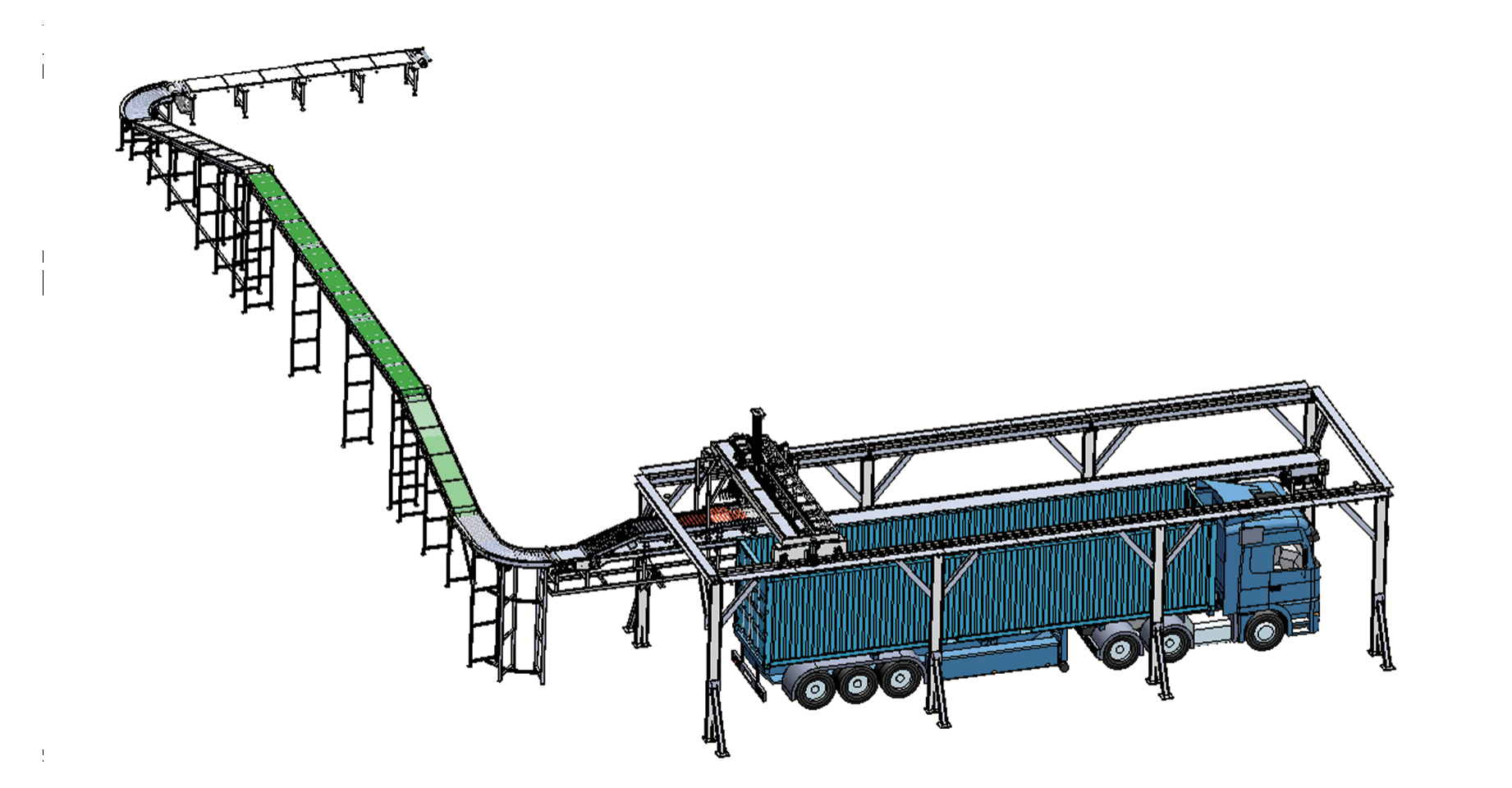

Intelligent loading system is an innovative product launched by our company on the basis of absorbing foreign advanced technology and meeting the requirements of automatic palletizing and loading of feed, food, building materials, chemicals, grain and oil and other production enterprises. The system adopts full-automatic equipment and mainly consists of an automatic conveying system, a platform to be palletized, a special gripper and an automatic positioning system.

Function Introduction/

The intelligent loading system can realize automatic opera-tions such as conveying, lifting, sorting and flattening, positioning, loading of bags according to the field matching and packaging requirements of customers, so as to save labor cost and improve production efficiency.

Technical Features

The working process of the whole system is automatically controlled by intelligent program control so as to realize contin-uous operation;

The special large and small grippers can enter the carriage for stacking products;

Compact structure, stable operation and convenient operation;Designed and customized according to customer site matching and packaging requirements.

Scope of Application

It is suitable for the automatic palletizing and loading of various bagged and boxed materials. Widely used in industries such as feed, food, building materials, chemicals, grain and oil, dairy products, and logistics, it automates the entire process from packaging and palletizing to loading.·

Equipment Parameters

Height of loading and positioning table: 2700~4000mm (on site)Packing bag specification: 25~50Kg

Loading efficiency: 800~1600 bags/hour

Conveying speed: 30~70M/min

Loader power: 25KW (depending on the on-site vehicle model)Power supply voltage: 380v (three-phase)

Positioning mode: automatic alignment
